DISPOSABLE AIR FILTER PANELS

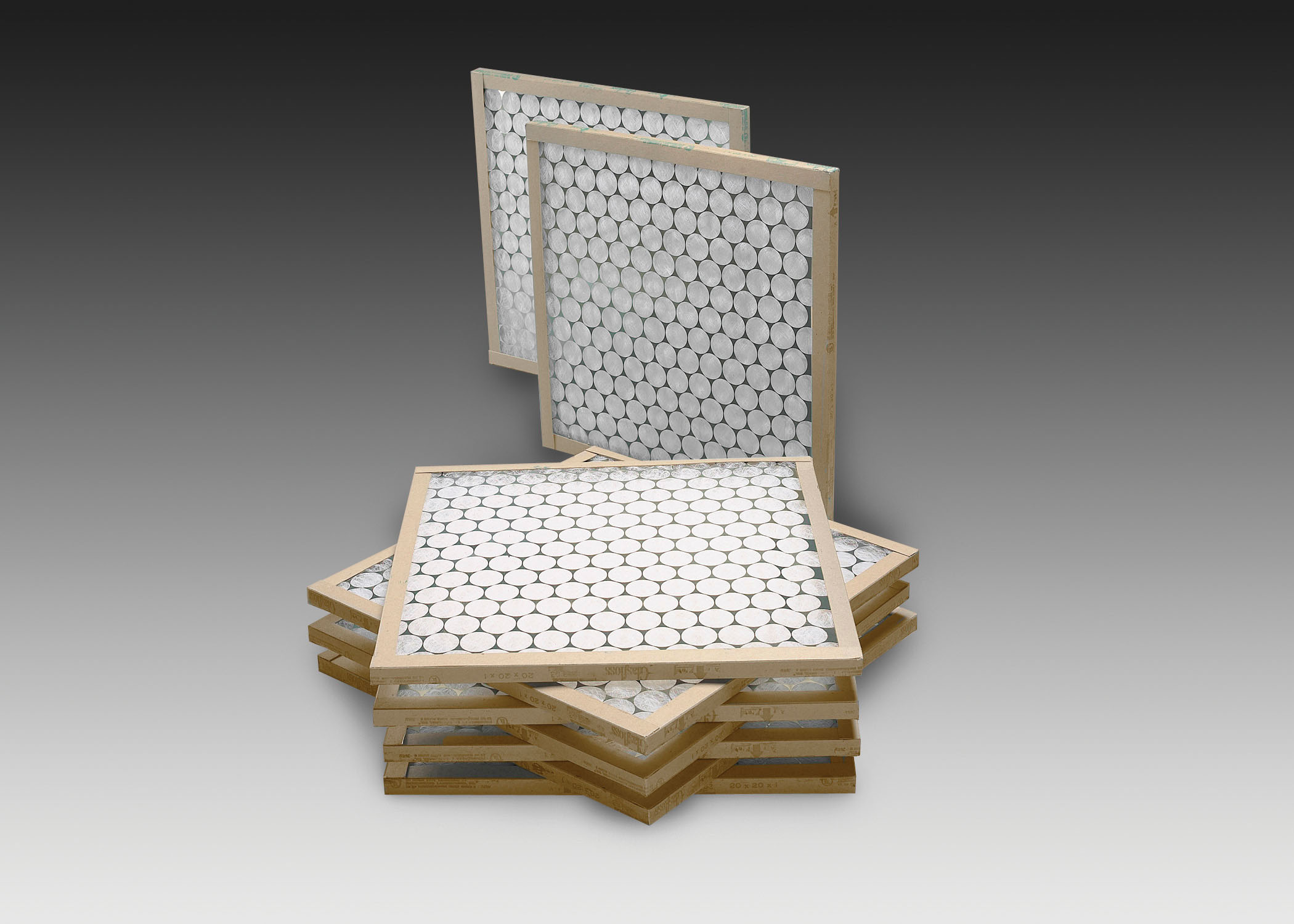

For lighter air flow, or an economical solution to air filtration requirements, a disposable air filter panel can be an excellent option. Our panels are manufactured with either fiberglass or 100% polyester media. Each panel is equipped with a metal grid that is thermally bonded to the internal side of the heavy-duty paperboard frame. All standard sizes are available in a 1″ and 2″ depth, and all custom sizes are available in 1/2″, 1″ and 2″ depths.

RANGE OF SPECIFICATIONS

Efficiency: n/a
Media: 100% Synthetic Materials, Fiberglass
Construction Materials: 100% Recycled Heavy-duty Moisture Resistant Paperboard Frame, 100% Post-Consumer Recycled Expanded Metal Support Grid, Media
Flow Rate: up to 300 CFM (depending on size and depth)
Sizes:  Depths of 1/2″ (for custom sizes), 1″, 2″
Standard frame sizes include: 10×10, 12×12, 12×20, 12×24, 14×20, 14×25, 15×20, 16×16, 16×20, 16×24, 16×25, 18×20, 18×24, 18×25, 20×20, 20×24, 20×25, 20×30, 24×24, 25×25
All Custom Sizes Available
