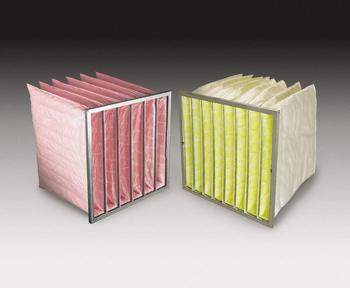

BAG AIR FILTERS – POCKET AIR FILTERS

Bag, or Pocket, Filters are designed as a serious step up from a standard pleated filter, providing high efficiency filtration at the most economical price. In some applications, a pocket filter is used as a primary filter for higher efficiency filters downstream, and the range of sizes available makes this product an excellent choice to fit seamlessly in many different installations. Because of the low initial resistance and high dust holding capacity, pocket filters can also be used as a final filter is less demanding HVAC systems.

All of our pocket filters are manufactured with a dual layer media and a thermoplastic sealant to eliminate bypass through the seams. Each individual pocket is bonded to a galvanized steel channel which is fastened to a steel header. Although not a solid as a rigid cell (or box style) filter, our pocket filters are built to last.

RANGE OF SPECIFICATIONS

Efficiency: MERV 9, MERV 11, MERV 13, MERV 14
Media: 100% Synthetic Polypropylene – does not support microbial growth
Construction Materials: Metal Frames, Polyurethane Adhesion, Media
Flow Rate: up to 2000 CFM
Sizes:
Standard Depths of 12″, 15″, 22″, 29″ and 36″
Various Standard Frame Sizes Available
