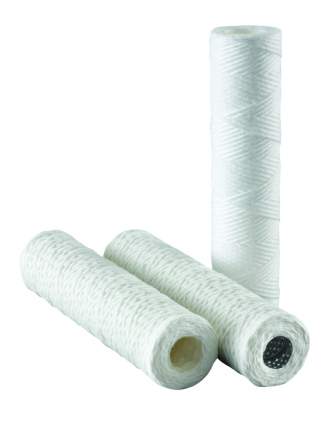

STRING-WOUND FILTERS

String wound filters are an economic solution to reduce fine sediments including sand, silt, rust, and scale particles in a variety of water streams. Unlike typical depth and pleated filters, many string wound filters are manufactured with a metal core, making these filters a great option for higher temperature applications.  String wound filters offer high dirt holding capacity with extremely low media migration, are available in a variety of media choices to fit any application, and are sized to fit any standard residential or light commercial housing.

RANGE OF SPECIFICATIONS

Micron Ratings: 1 – 150
Media: Polypropylene, Cotton, Bleach cotton, Acrylic, Rayon, Polyester, Nylon, Glass
End Cap Configuration: No end caps, double open ended
Construction Materials: Metal – tin plated and stainless steel (304 & 316) core, Polypropylene core, core covers in cotton/polypropylene/polyester/paper/glass/membrane
Temperature Rating:  40°F to 750°F (4.4°C to 399°C)
Sizes:
Outer Diameter: 2.5″ & 4.5″
Inner Diameter: 1″
Length: 10″ & 20″

Stringwound Filter Nomenclature Table
